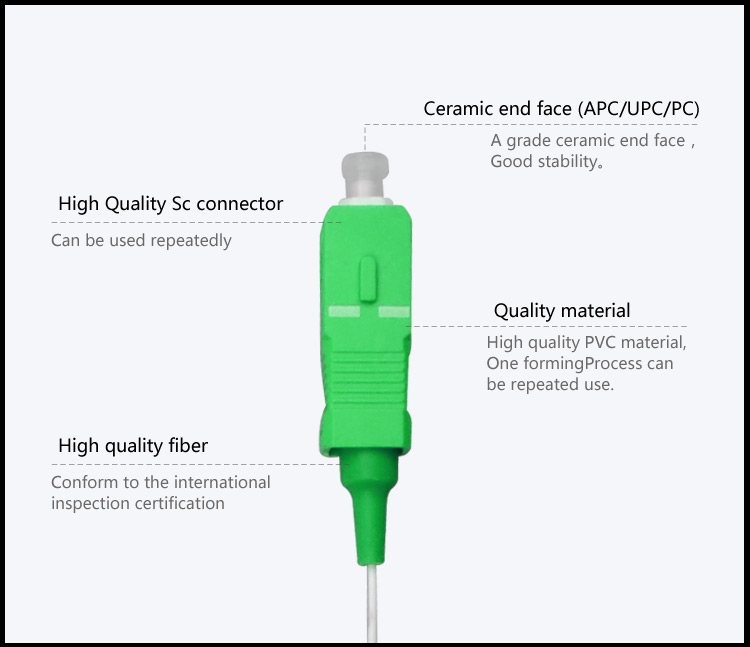

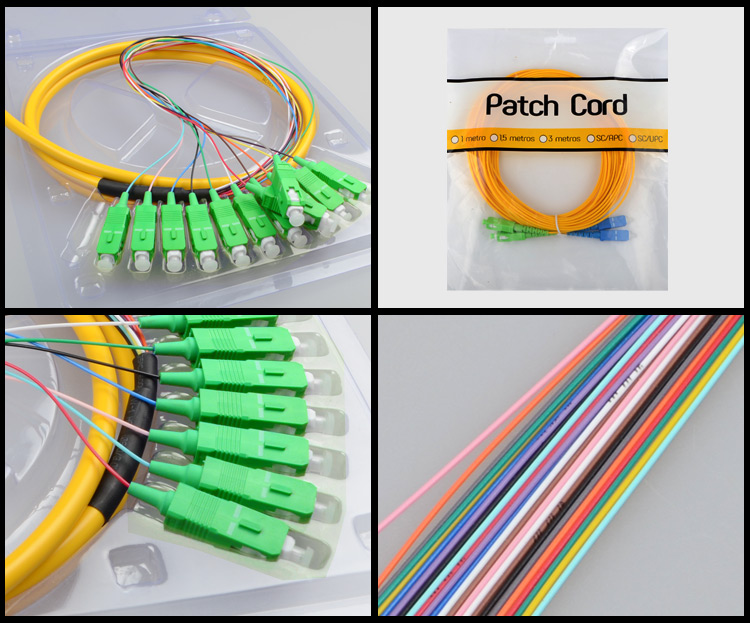

Pigtail 12 Core SC/APC SM

Product NameBundle PigtailFiber ModelSingle mode
Product Model12 Core SC/APC SMFiber Core9/125μm
Optical ConnectorSCJacket ColorYellow
Connector End FaceAPCJacket DiameterMother cable 6mm/Subcable 0.9mm
Work EnvironmentIndoor Jacket MaterialPVC/LSZH
ParameterSC, LC,FC,ST fiber patch cord
SMMM
PCUPCAPCPC
Insertion loss(typical)≤0.3≤0.3≤0.3≤0.3
Return loss≥45≥50≥60≥30
Interchangeability≤0.2dB
Salt Spray≤0.1dB
Repeatability≤0.1dB (1000 times)
Vibration≤0.2dB (550Hz 1.5mm)
Temperature≤0.2dB (-40+85 sustain 100 hours)
Humidity≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset0μm ~ 50μm
Radius of Curvature7mm ~ 25mm
