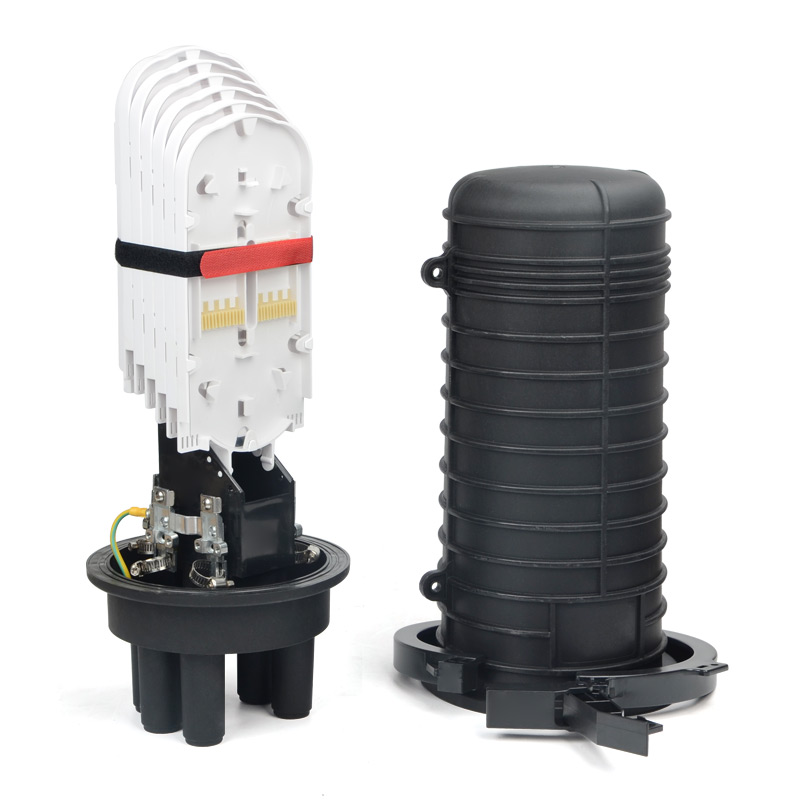

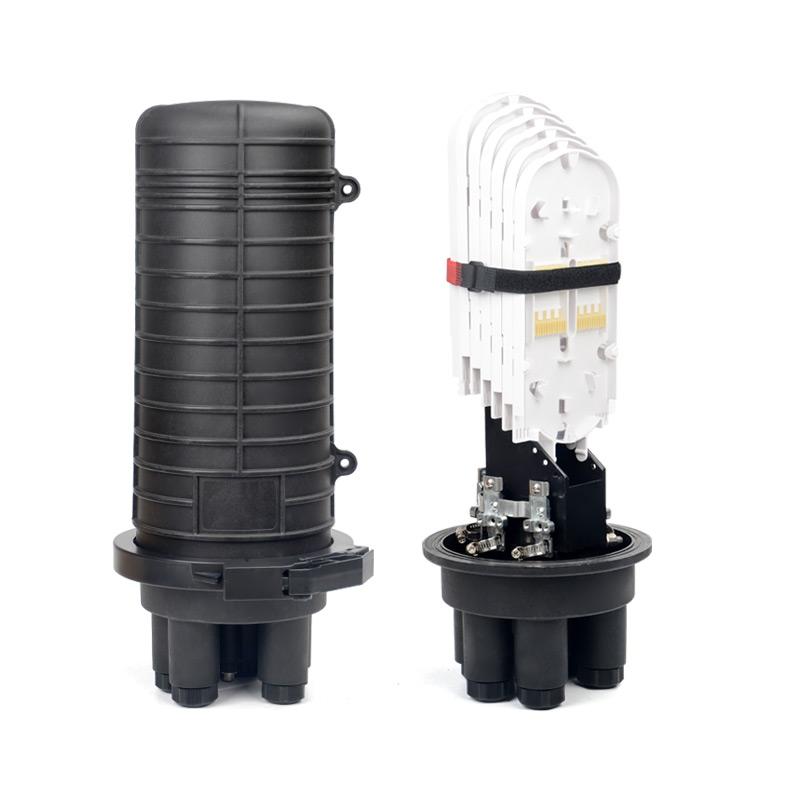

FCBF-L 12 24 48 96 144 CORE Fiber Optic Joint Closure Mechanical Heat shrink type

Product nameFiber Optic Joint ClosureIP RateIP68
Product ModelFCBF-L

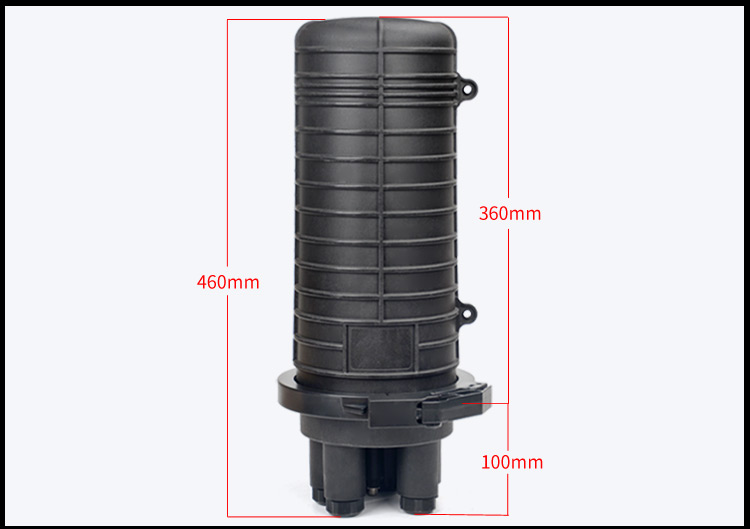

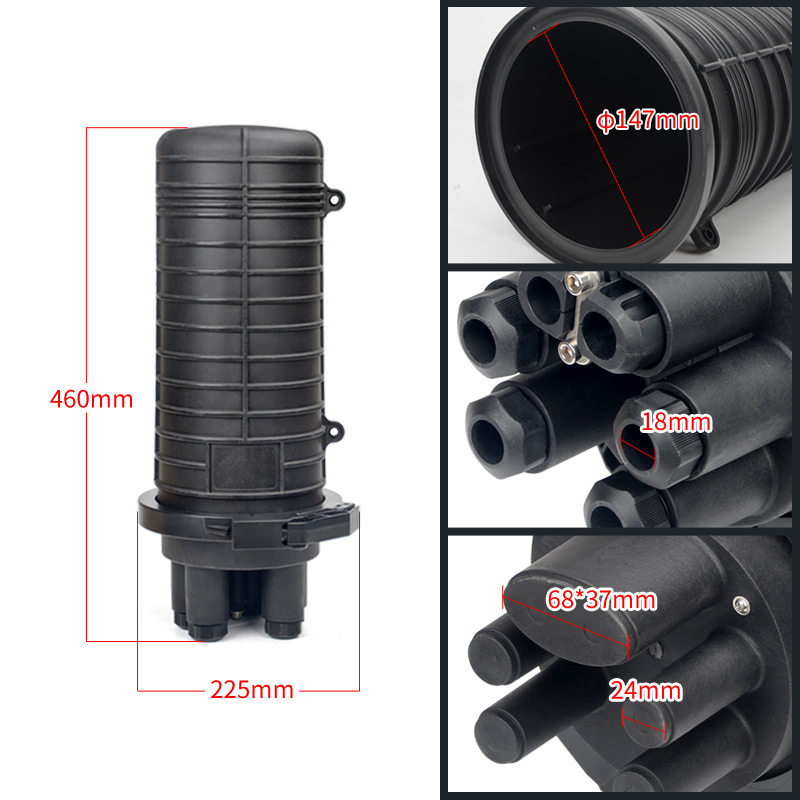

Product Size

Inner Box Size

460*225*190mm

φ147mm

470*240*220 mm

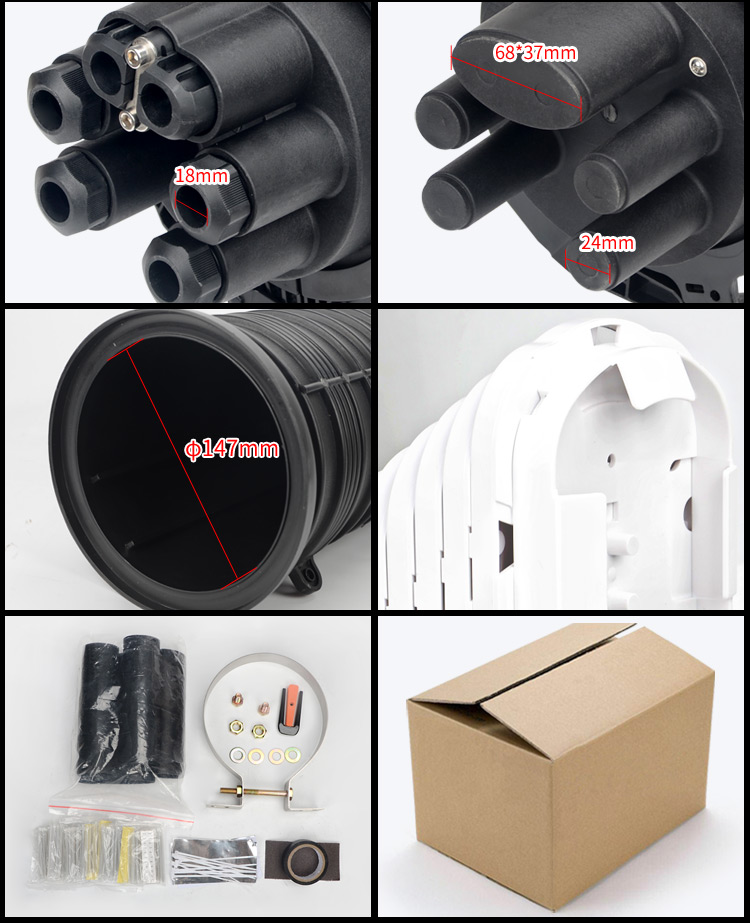

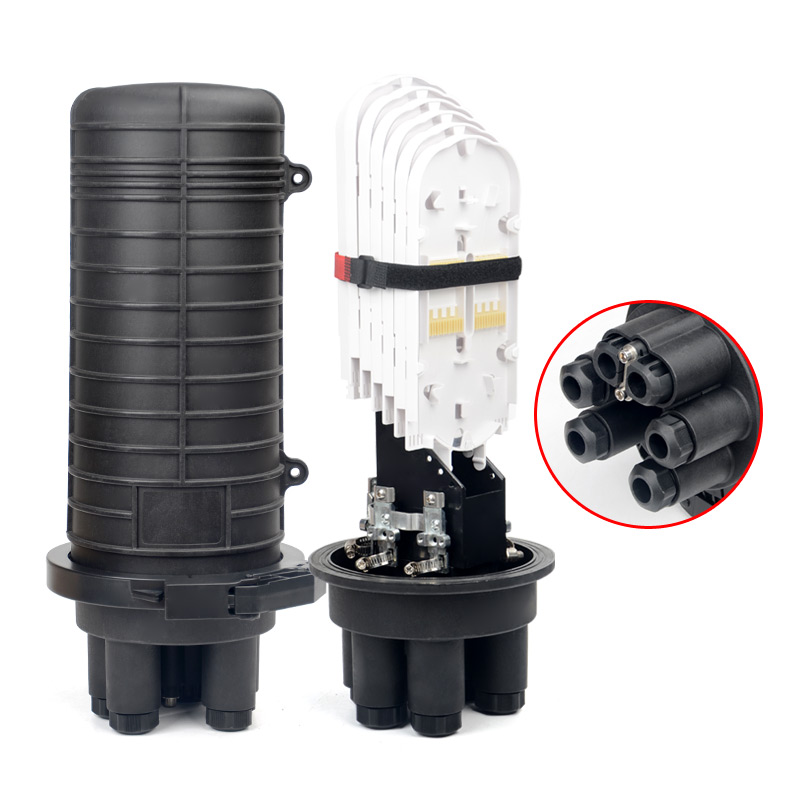

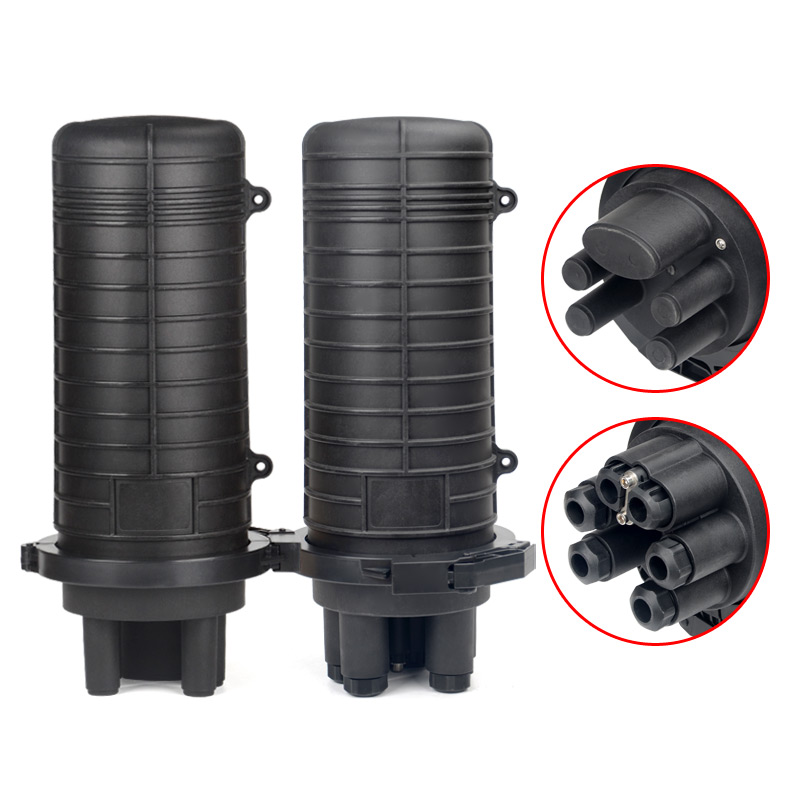

Ports

1 inlet port 68*37mm

 4 out port φ24mm

Packing Quantity

6 pcs / carton

65*48*50cm 22.5kg

Max Core

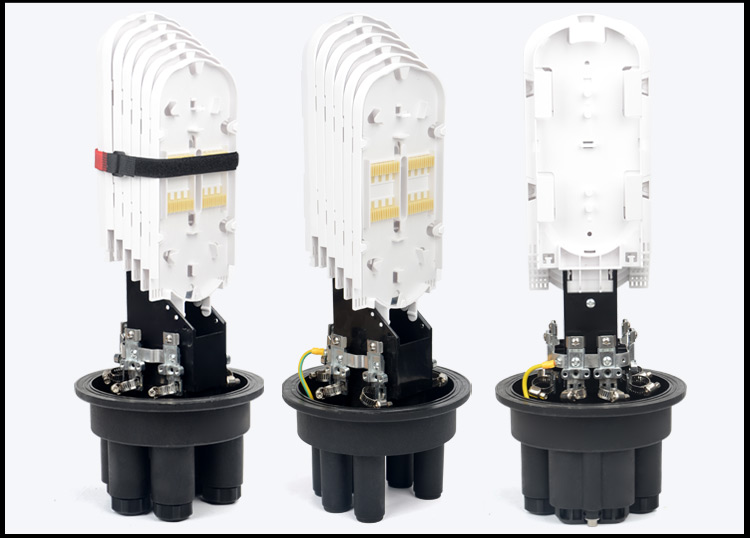

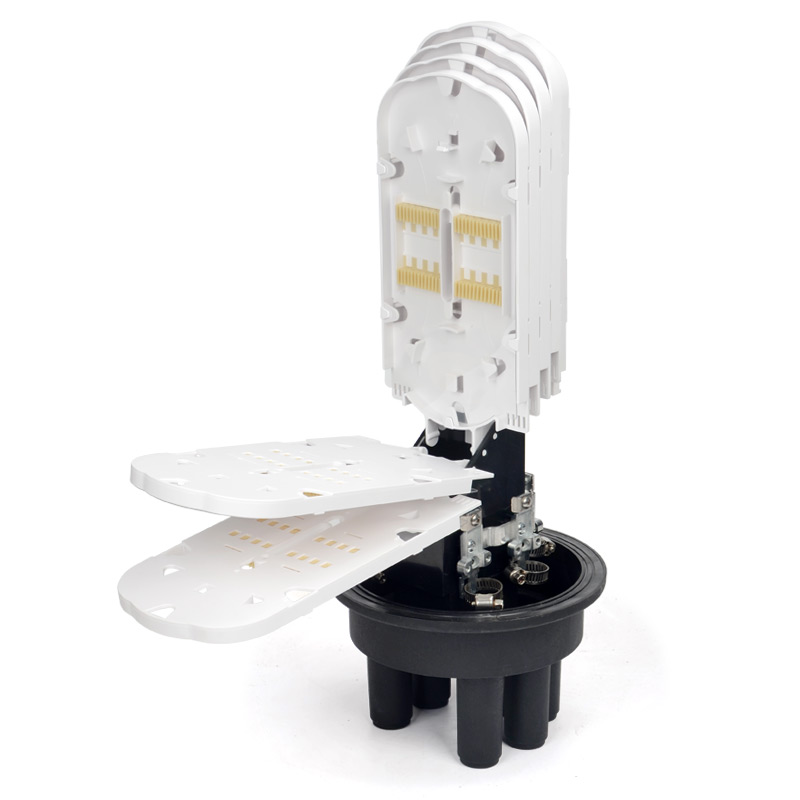

24F/tray, max capacity 144F(6 trays)

MaterialPolymer Plastic+Fiber

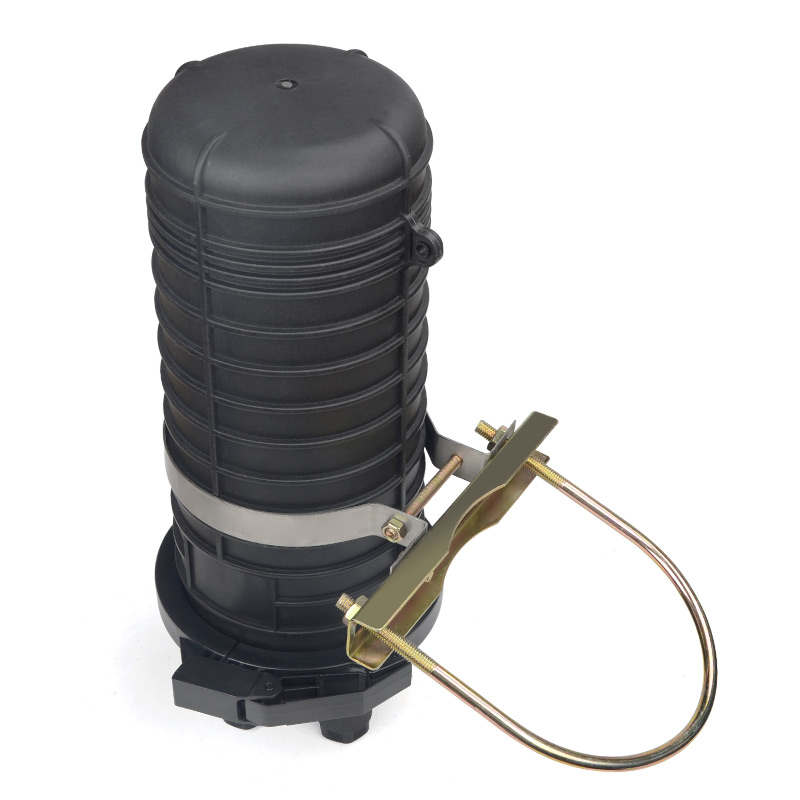

Installation TypeVerticalG. weight3.55kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.

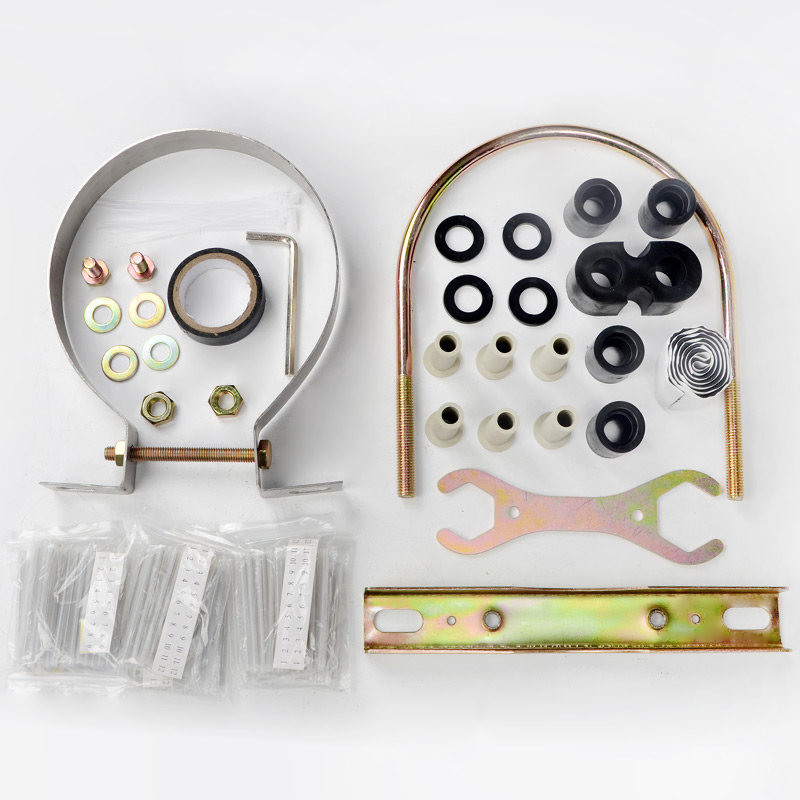

2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.

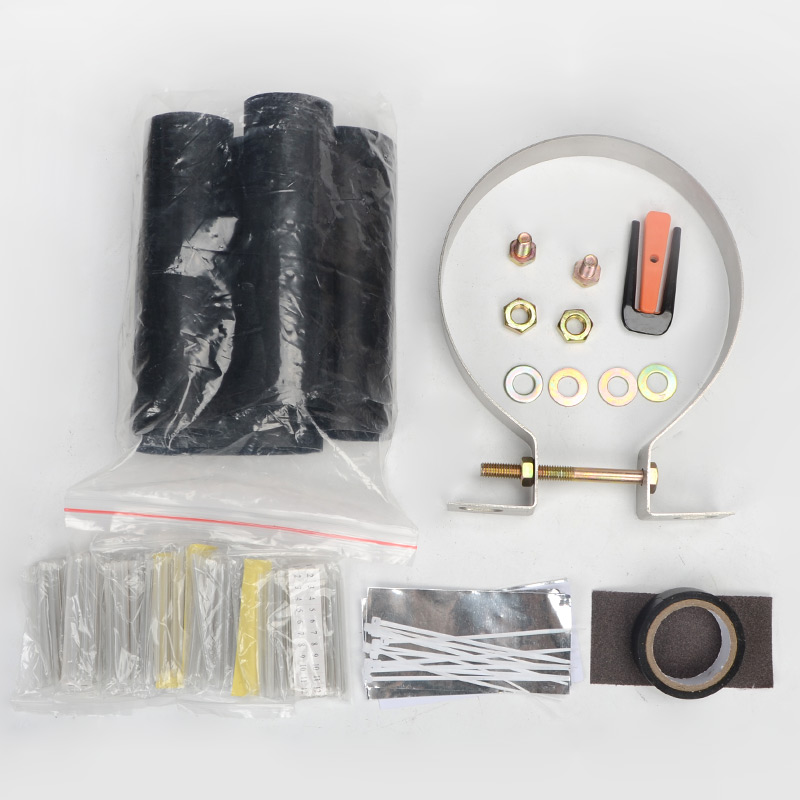

8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
